55 Gallon 135Gallon Cone Bottom Inductor Chemical Dosing Tank With with Frame
Description
Treering Plastics , produced all kinds of rotomolding products , injection products ,
we most like to customized all kinds of roto mold tank ( container )
Cone bottom tank , PE material , suitable for weight ratings < 1.6 specific gravity . Thies type of cone bottom tank are shallow cone ,
the standing is steel ,stainless steel .
Out factory can help to designing a tank system for clients process requirements including welded nozzles, level control, agitation, heating and
insulation and other engineered enhancements. All of The cone bottom tanks are optionally equipped with standard fittings for discharge
connections and a threaded access cover (manway) at no additional charge. TreeringPlastics can also provide most of our tanks without fittings
installed at your option. We routinely provide valves, pumps, access ladders and other accessories with any tank.
the Draining , the agitator , mixer , the level indicator , steel cage .....
Advantage :
• Seamless one piece moulding- Rotomolding
• Strong and durable design
• Split level moulded top allows for the mounting of apparatus- like the motor , Pump ..
• Tight fitting screw caps supplied as standard
• Integrated volume gauge (litres)
• Moulded in virgin LLDPE, food grade and UV resistant
Specifications :
Model | CMC500L |
| Size | D800 *H1380 mm |
Thickness of the wall | 6 mm - 8 mm |
Storage checmical item | Alkaline or low corrosion chemicals ,Biocides ,oxidiser corrosive fluids |
Volume of Tank(litre) | 500L ( other volum avaiable : 50L 100L 200L 300L 500L1500L 2000L 3000L ) |
Design | Special top to drilled hole and install the pumps and other machine |
| Color | Stock color : WHite , yellow , customized other color |
| Outlet Size | DN 15 ,DN 20 DN 25,DN32 DN 40 |
| Lids size | D 230 mm |
| Portable | Yes |
| Application | Dose Chlorine for disinfection
Dose NaoH for pH adjustment
Dose PAC for coagulation
Dose Polymer for flocculation
Used on Cleaning fruit and vegetables
Cooling Water Treatment in Energy Generation
Cooler water treatment
Desalination of Seawater and Brackish Water
Disinfection of Potable WaterFeed Water Treatment in Energy Generation
|

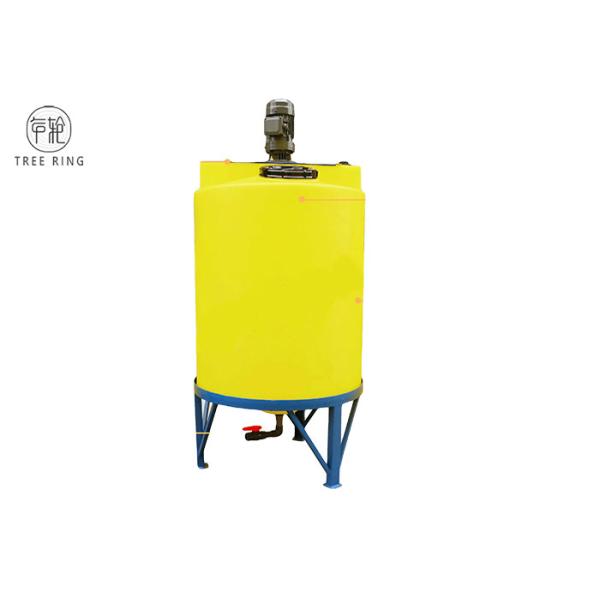

Photo of the 500L Cone bottom Chemical Dosing Tank
--Cone bottom plastic drum , color can be customized as your requested
-- Enough Stock for your ordered
-- Install the mixing motor as your requested : 0.75KW or other power
--Chemical Dosing systems , Customized as your request , the cage is stainless steel , the PUMP , the valve , the Mixer ...
